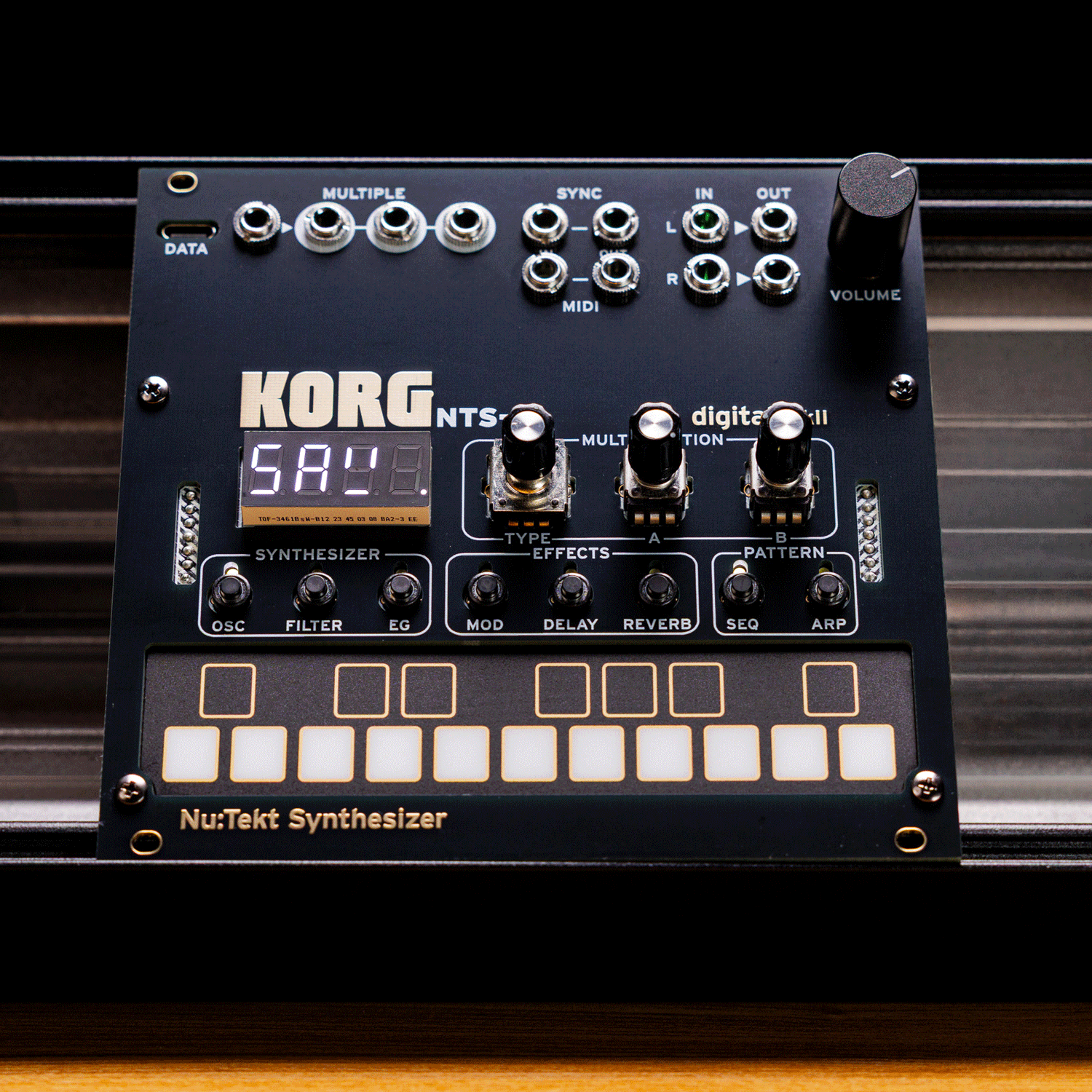

ISOGRID / NTS-1 MK2 / REV A
SPECS — MODULE_001
NTS-1 MK2
CONVERSION KIT
PRICE
$169
INSTALL
NO SOLDER REQUIRED
INCLUDES
FACEPLATE + PCB ASSEMBLY
POWER ACTIVATOR TAB
90° USB-C CABLE
90° TRS CABLES (×6)
IDC POWER CABLE
M3 RACK MOUNTING SCREWS
POWER ACTIVATOR TAB
90° USB-C CABLE
90° TRS CABLES (×6)
IDC POWER CABLE
M3 RACK MOUNTING SCREWS
MK2
AVAILABLE NOW!
SHIPPING
WORLDWIDE
MODULARGRID
NTS-1 MK2 ↗
NTS-1 ↗
NTS-2 ↗
SECURE CHECKOUT — POWERED BY STRIPE
CUSTOMER_LOG
What People Are Saying
★★★★★
"Very well thought out and easy to assemble."
★★★★★
"Clearly made by someone who cares."
★★★★★
"High-quality faceplate, looks even better than pictured."
★★★★★
"11/10 for customer service — went above and beyond for a replacement."
★★★★★
"Friendly seller, fast shipper, and an incredible product."
★★★★★
"Absolutely nothing to complain about. Pull the trigger."
Real reviews from ISOGRID customers on Reverb
FAQ_MODULE
Frequently
Asked Questions

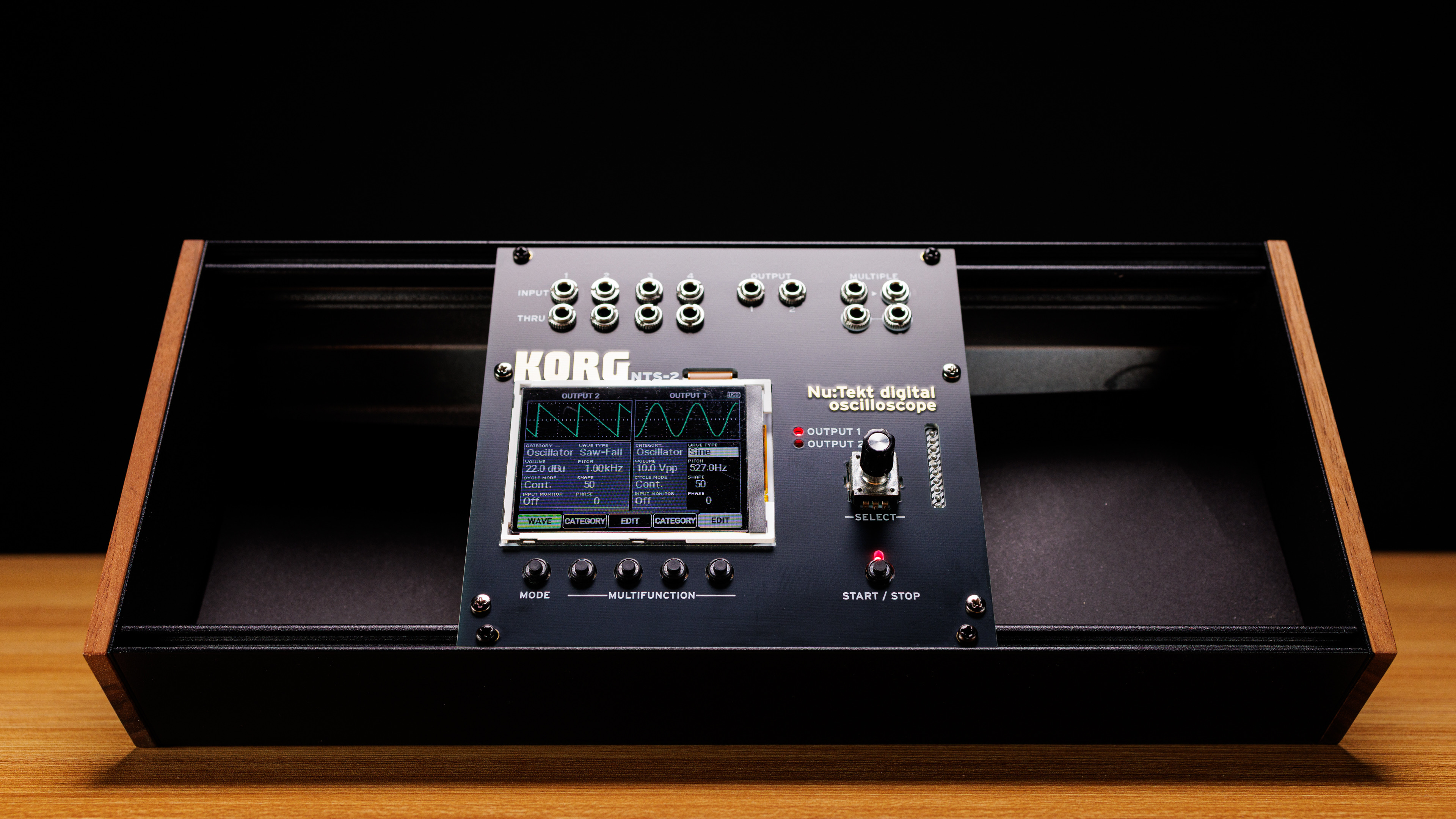

Thanks for your interest in our NTS-1 / NTS-2 Conversion Kits! We try our best to release these through product drops a few weeks apart. To ensure you never miss one, sign up for DROP ALERT notifications through the NOTIFY ME form above.
NOTE: NTS-1 MK1 kit is officially discontinued. NTS-1 MK2 kit is nearly here — however this is a side project for us. We can't make any guarantees on availability, quantity, or frequency of restocks. Thanks for your understanding!
NOTE: NTS-1 MK1 kit is officially discontinued. NTS-1 MK2 kit is nearly here — however this is a side project for us. We can't make any guarantees on availability, quantity, or frequency of restocks. Thanks for your understanding!
When you subscribe, you'll get an email a few days before the drop with the date and time. Check your spam folder just in case — the email includes a sneak peek of what's coming.
On DROP DAY, the landing page unlocks checkout directly — no need to go anywhere else.
On DROP DAY, the landing page unlocks checkout directly — no need to go anywhere else.
We also list on Reverb.com. We aren't carried in any brick-and-mortar stores yet.
* While we'll always help troubleshoot our products no matter where you bought them, we can't guarantee the same quality if purchased through a reseller on a third-party site like Reverb, as opposed to buying directly from us.
* While we'll always help troubleshoot our products no matter where you bought them, we can't guarantee the same quality if purchased through a reseller on a third-party site like Reverb, as opposed to buying directly from us.
$5 flat rate shipping to the Continental U.S. and Hawaii. Discounted international rates:
Canada $20 · Mexico $36 · European Union $30 · Europe (Non-EU) $32 · Asia $45 · Oceania $42 · South America $38 · Africa $38.
Let us know if you'd like us to add more countries.
Canada $20 · Mexico $36 · European Union $30 · Europe (Non-EU) $32 · Asia $45 · Oceania $42 · South America $38 · Africa $38.
Let us know if you'd like us to add more countries.
Reach out at helloisogrid@gmail.com for dedicated support.
Note: support is exclusively available for customers who currently own a conversion kit. All other emails will not be addressed.
Note: support is exclusively available for customers who currently own a conversion kit. All other emails will not be addressed.
No soldering required. The kit is entirely plug-and-play — connect the included TRS cables and IDC power cable, seat the PCB Assembly onto the faceplate, and mount to your rack. A full video installation guide and reference manual are included.
Yes — this is critical. The red wire on the IDC cable marks Pin 1 and must align with the −12V label on the PCB Assembly connector. Inserting the cable in the wrong orientation will damage the PCB, the NTS-1 Mk2, and potentially other modules in your rack. Always verify orientation before powering on.
Connect all cables to the NTS-1 Mk2 before removing any screws from the stock faceplate. Leave the far ends loose. Once the unit is seated in the faceplate and PCB Assembly is attached, flip the assembly and connect each cable to its labeled port on the underside of the PCB board:
USB-C → USB-NTS1 · MIDI IN → MIDI-IN · MIDI OUT → MIDI-OUT · SYNC IN → SYNC-IN · SYNC OUT → SYNC-OUT · Audio IN → AUDIO-IN · Audio OUT → AUDIO-OUT
USB-C → USB-NTS1 · MIDI IN → MIDI-IN · MIDI OUT → MIDI-OUT · SYNC IN → SYNC-IN · SYNC OUT → SYNC-OUT · Audio IN → AUDIO-IN · Audio OUT → AUDIO-OUT
Connect a USB-C cable to the DATA port, open the Korg NTS-1 digital kit Librarian, and go to the GLOBAL tab. Key settings:
INPUT GAIN → −24dB (matches Eurorack levels, prevents clipping) · INPUT ROUTE → 3: PRE MODULATI · CLOCK SOURCE → 1: AUTO · MIDI ROUTE → 0: USB+MIDI · AUTO POWER OFF → 0: OFF
INPUT GAIN → −24dB (matches Eurorack levels, prevents clipping) · INPUT ROUTE → 3: PRE MODULATI · CLOCK SOURCE → 1: AUTO · MIDI ROUTE → 0: USB+MIDI · AUTO POWER OFF → 0: OFF
Yes. The NTS-1 Mk2 requires TRS MIDI Type A. A Type B cable will produce no signal and no error — which can be confusing to diagnose. Check that any cable or adapter is explicitly labeled Type A. A TRS Type A to 5-pin DIN adapter is not included but is widely available.
Yes. The DATA port on the front panel connects directly to the NTS-1 Mk2. Connect a USB-C cable and run the Korg System Updater or Korg Librarian without removing the unit from your rack. Firmware updater available at korg.com ↗
Full installation instructions, front panel reference, input/output guide, and FAQ.
Covers TRS MIDI type, SYNC IN behavior, input gain, power connection, and step-by-step build order.
REFERENCE MANUAL ↗
REFERENCE MANUAL ↗
About ISOGRID
ISOGRID makes boutique Eurorack conversion kits that bring desktop synths into modular systems with no compromises. Each kit is designed, built, and assembled by hand in Los Angeles, CA and Asheville, NC. The NTS-1 MK2 Eurorack Conversion Kit is the latest in a line of Korg conversion kits that started with the original NTS-1.
