NTS-1 MK2 Conversion Kit

Name: NTS-1 MK2 Eurorack Conversion Kit
Brand: ISOGRID
SKU: nts1-mk2-conversion-kit
Price: 169.00 USD
Availability: InStock

ISOGRID NTS-1 MK2 Eurorack conversion kit panel

$169.00+ tax/shipping

Secure checkout — powered by Stripe

Introducing the ISOGRID NTS-1 MKII Eurorack Conversion Kit - built to make the NTS-1 MKII feel like it was always meant to live in a rack. Clean layout. Proper integration. No hacks. Just a finished, rack-ready front panel that turns the NTS-1 MKII into something you actually want to patch.

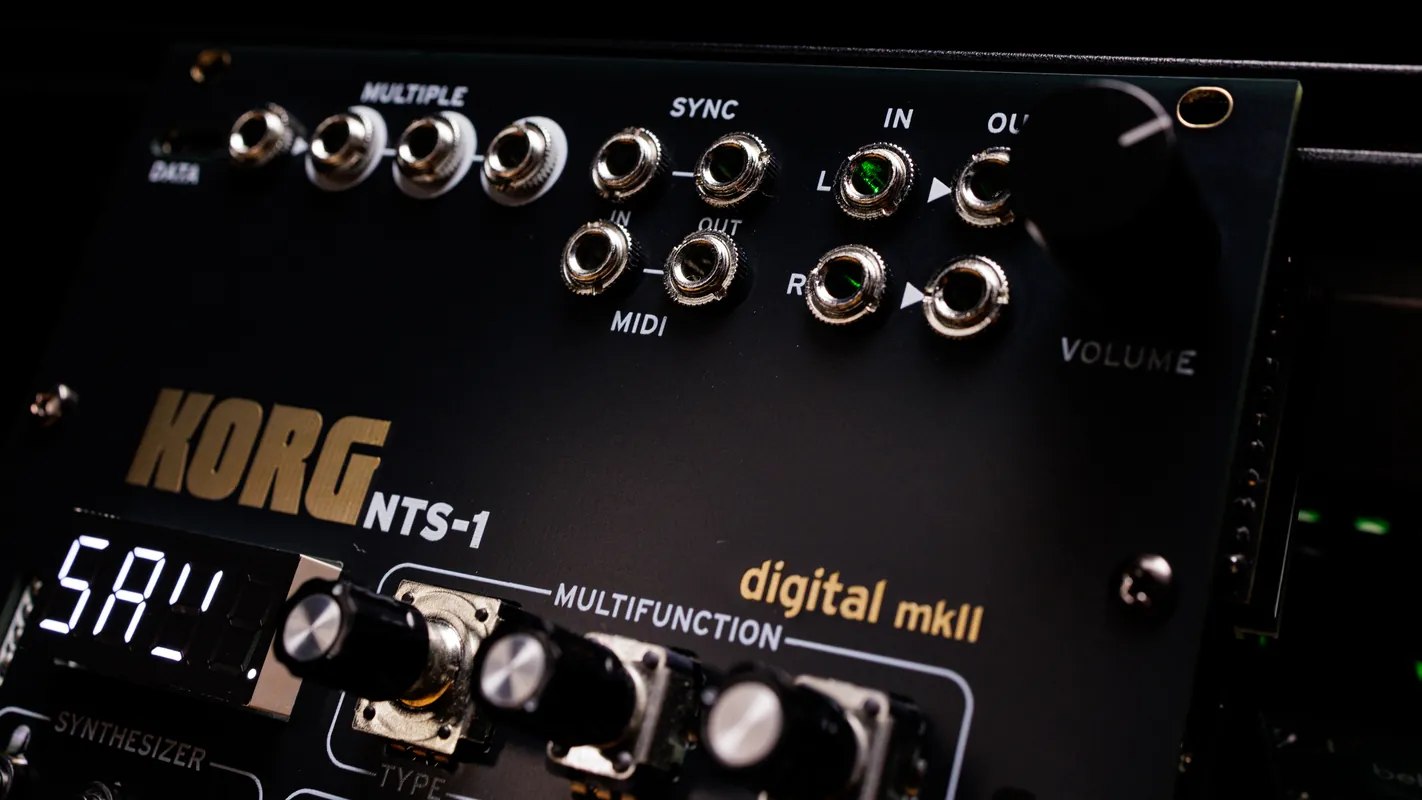

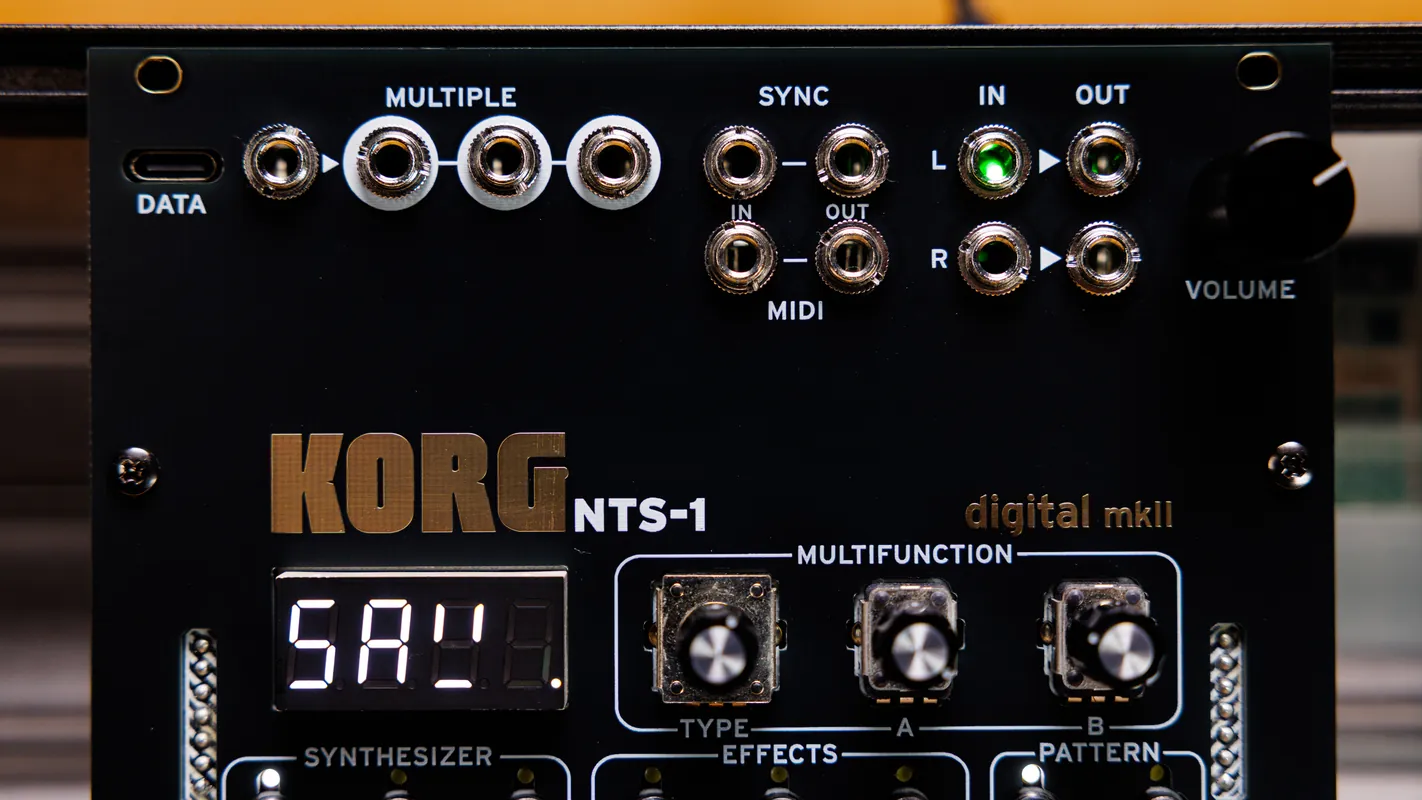

A full MKII rebuild, not a cosmetic update. Stereo audio, MIDI IN/OUT, and SYNC IN/OUT all brought to the front panel, plus a USB-C DATA port for firmware and Librarian without pulling the unit, a buffered 1-to-3 multiple, and a master VOLUME control. Everything the NTS-1 MKII needs to actually live in your rack.

Width26HP

Inputs4× TRS, normalling

Thrus4× passive

Outputs2× stereo

MultiplesBuffered, 1-to-3

Bus Power10/16-pin IDC

Features

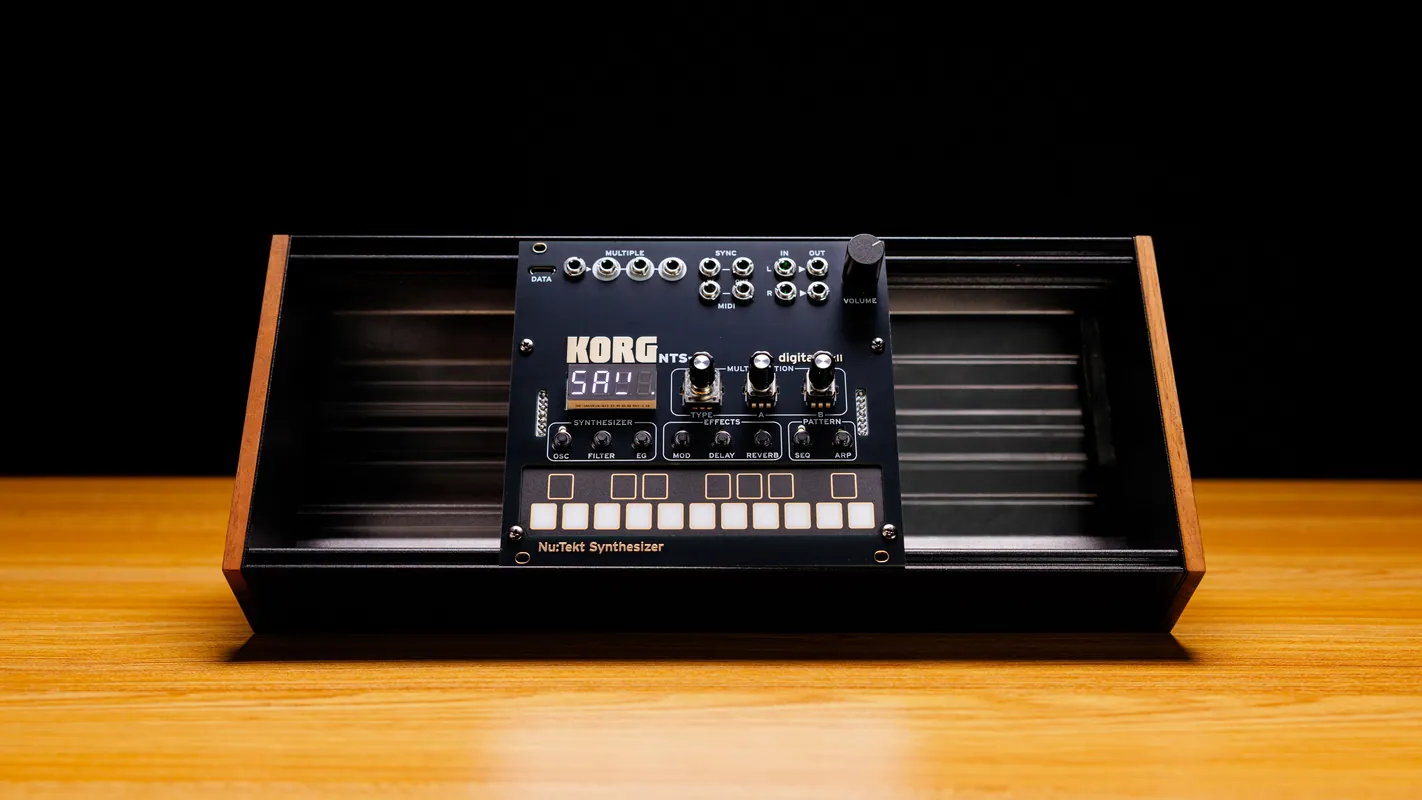

Converts Korg Nu:Tekt NTS-1 Digital Synthesizer MKII to standard 3U Eurorack format
Direct bolt-on kit

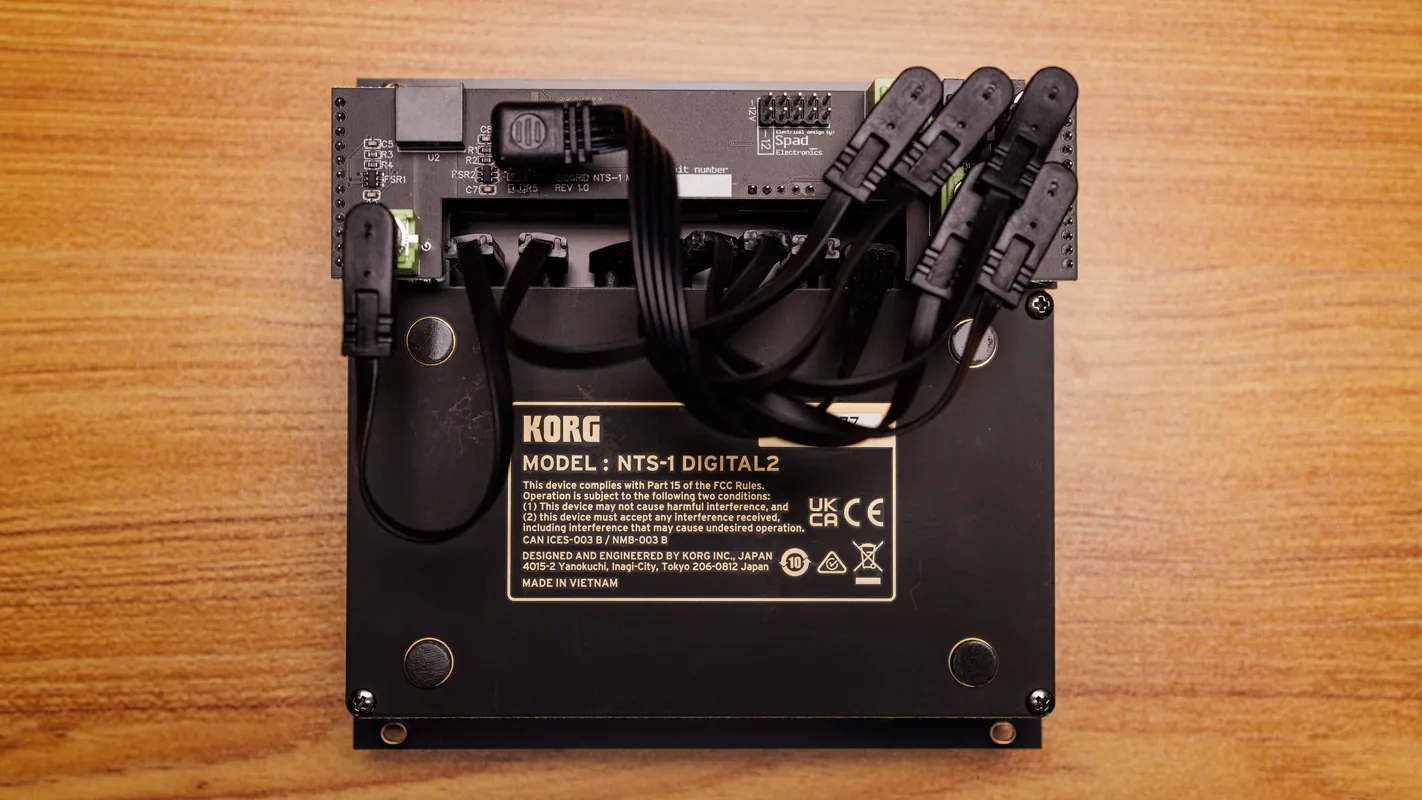

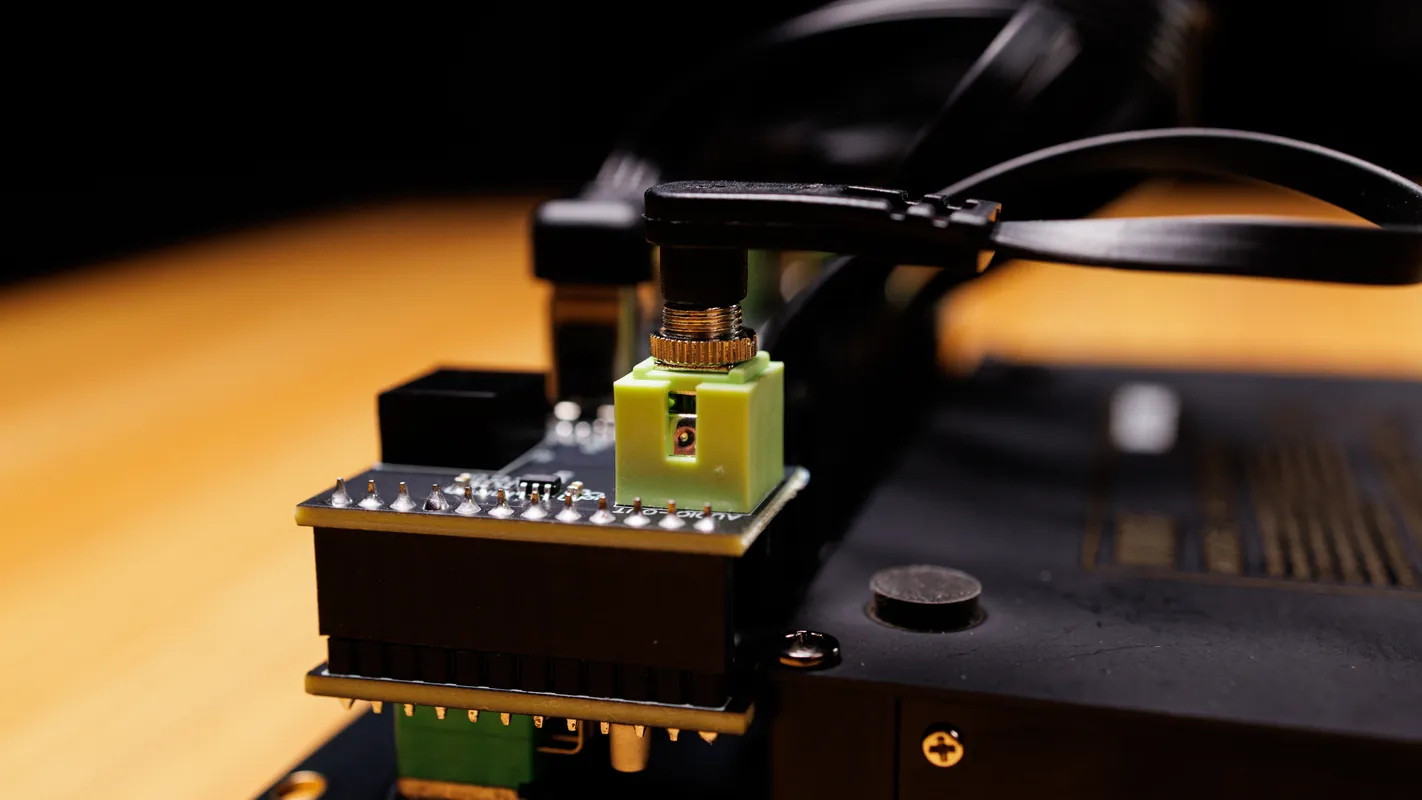

Plug & Play TRS cables - no soldering required
Buffered multiple (1 input, 3 identical outputs)
Dedicated L / R mono inputs and outputs (stereo split to L and R)
Summed mono on L (patch L only for summed mono - applies to both input and output)
Output level matched for Eurorack systems with master VOLUME control
Access to SYNC IN / OUT and MIDI IN / OUT (TRS Type A) from the faceplate

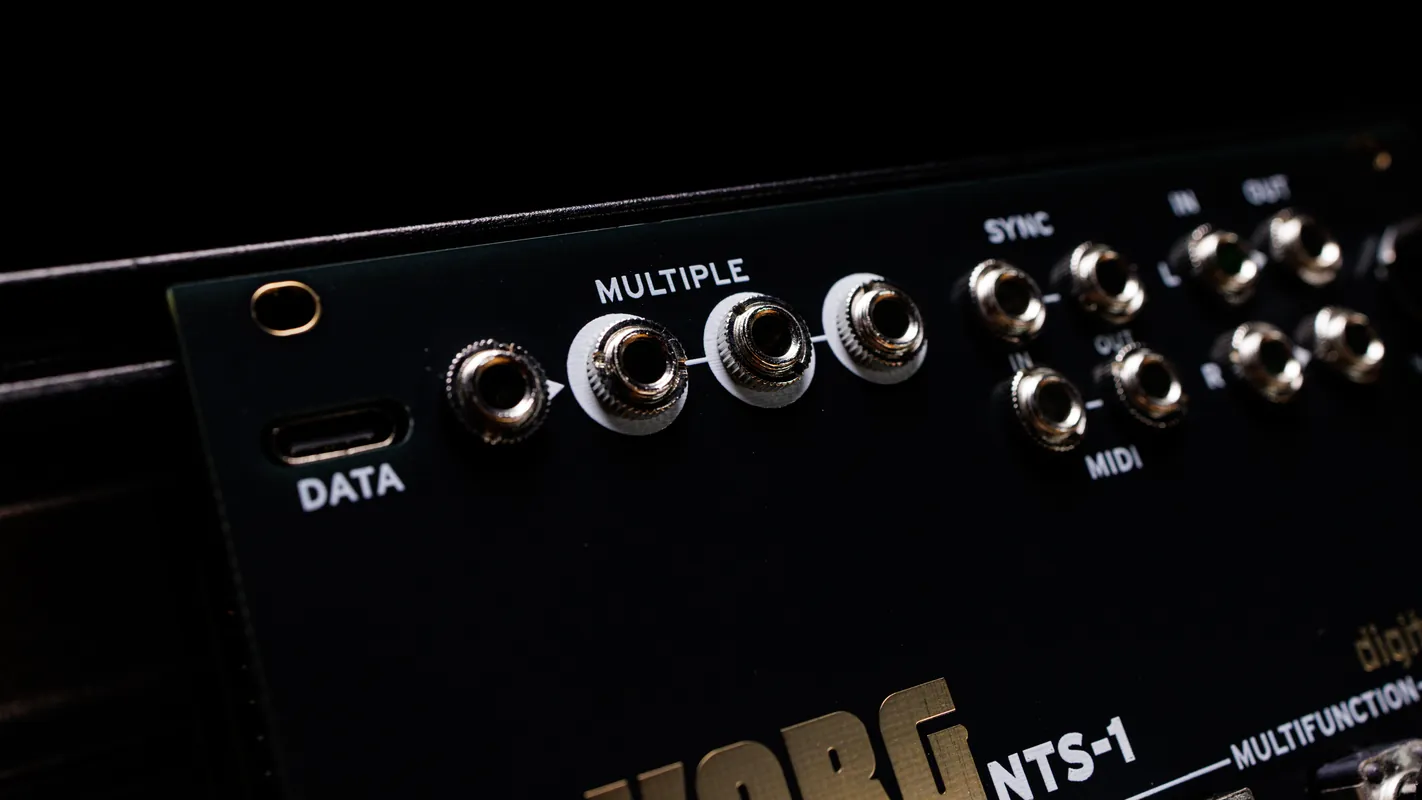

Front-panel USB-C DATA port for firmware updates, patch management, and Korg Librarian
Custom power conversion and noise isolation from your rack bus board

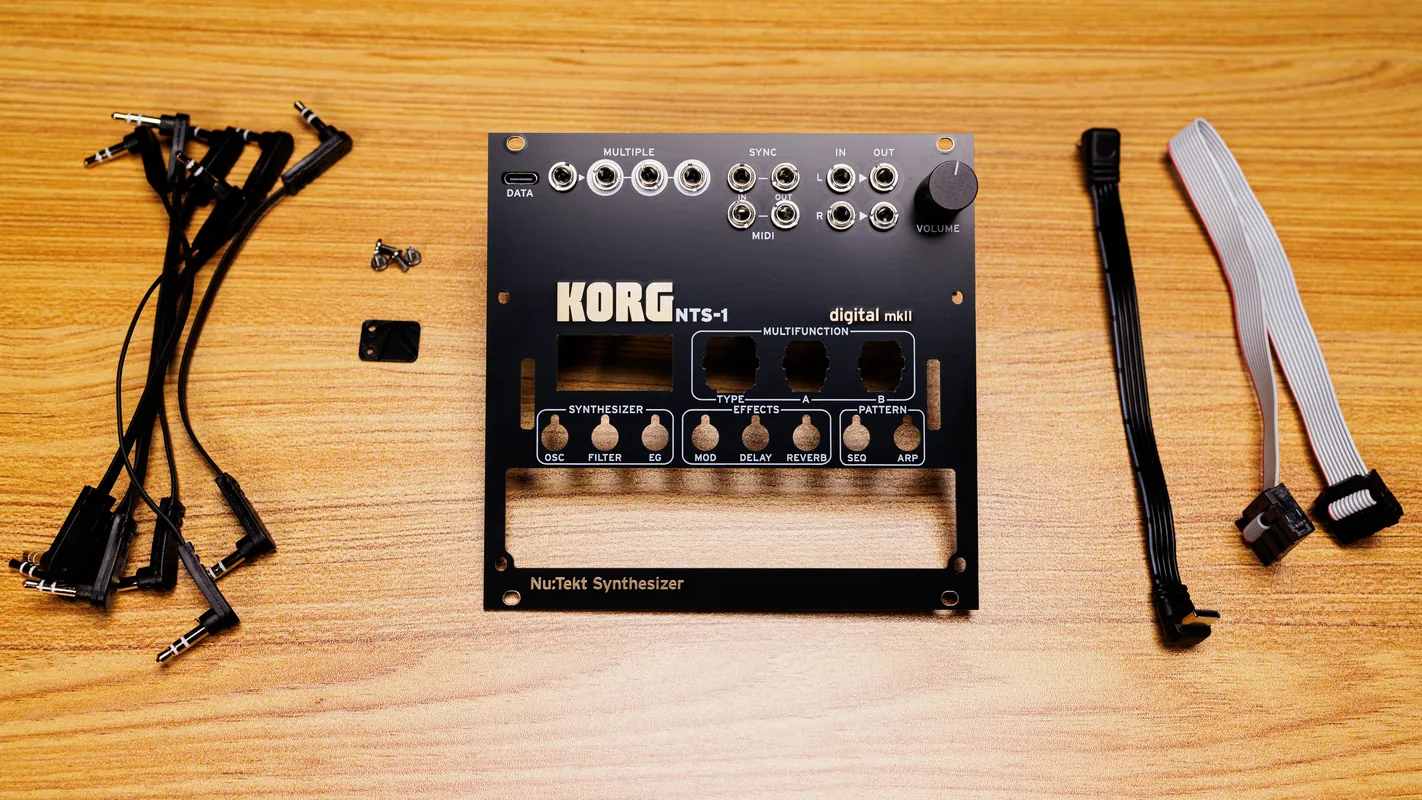

Includes

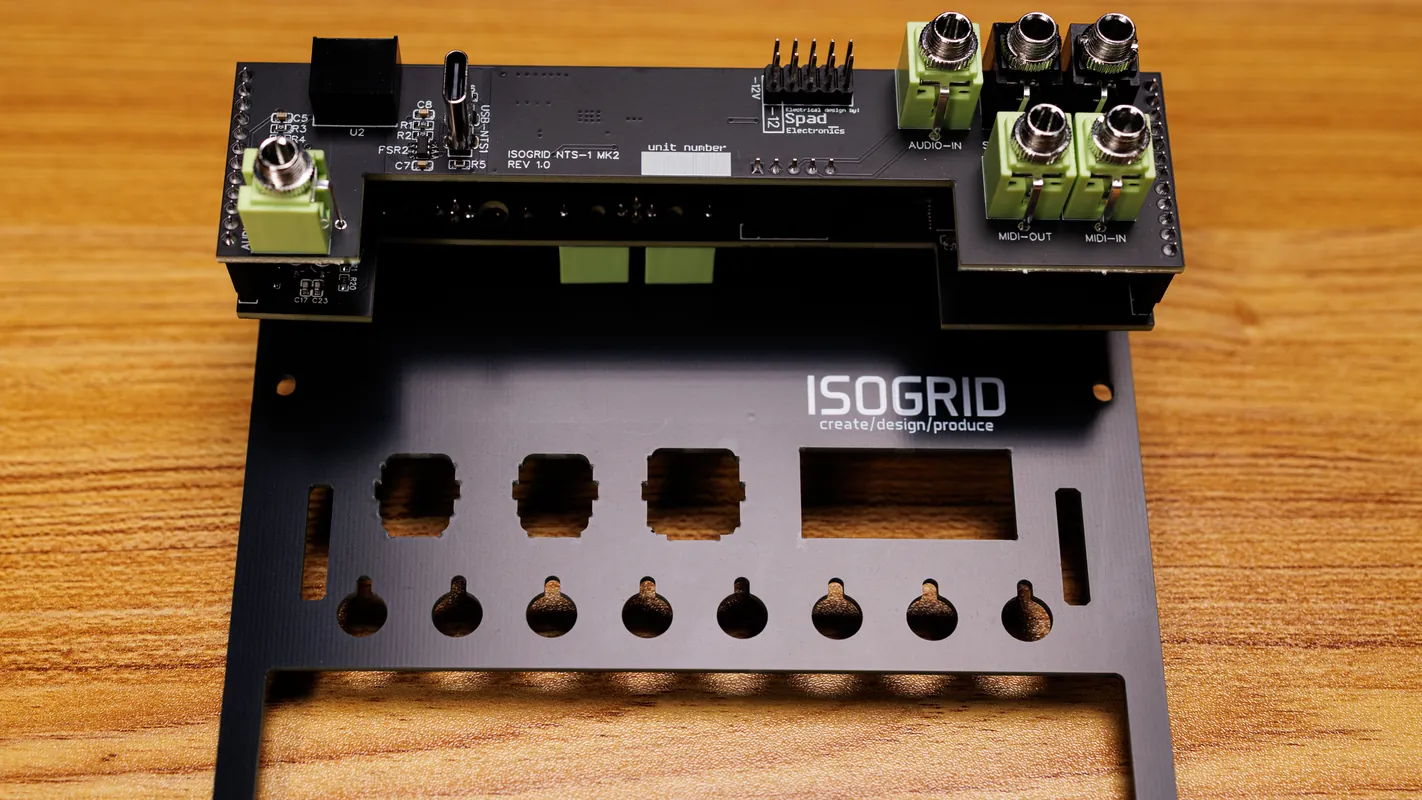

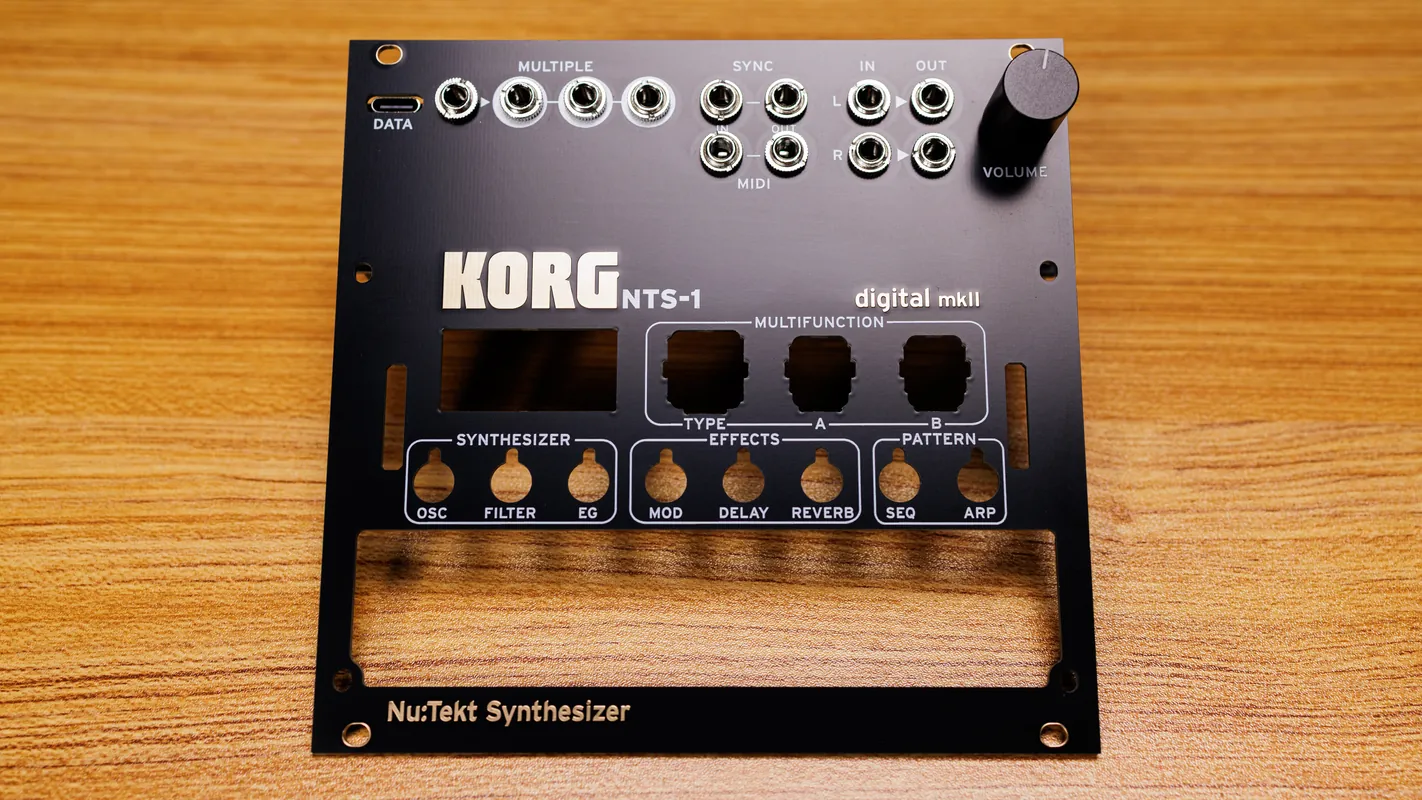

(1) Faceplate assembly
(1) Power activator tab
(1) 90-degree USB-C to USB-C cable
(6) 90-degree 3.5mm TRS cables
(1) 10-16 pin IDC power cable
(4) M3 rack mounting screws

Knowledge Base (Pre-Buy FAQs)

PowerRequires Eurorack power via IDC cable. Always power off your rack before connecting. Incorrect cable orientation can damage the kit, the NTS-1 MKII, and other modules.

MIDIUses TRS MIDI Type A. A Type A to 5-pin adapter is not included but widely available.

Input LevelsEurorack signals can be hot. You may need to lower input gain in Korg Librarian (Global tab) to avoid clipping.

Firmware / LibrarianYes - firmware updates and Korg Librarian work from the front DATA port while fully racked.

CompatibilityDesigned exclusively for the NTS-1 MKII. Not compatible with the original NTS-1.

Not Included

Korg NTS-1 MKII not included.

TRS Type A to 5-pin DIN MIDI adapter not included.

Case / additional modules not included.

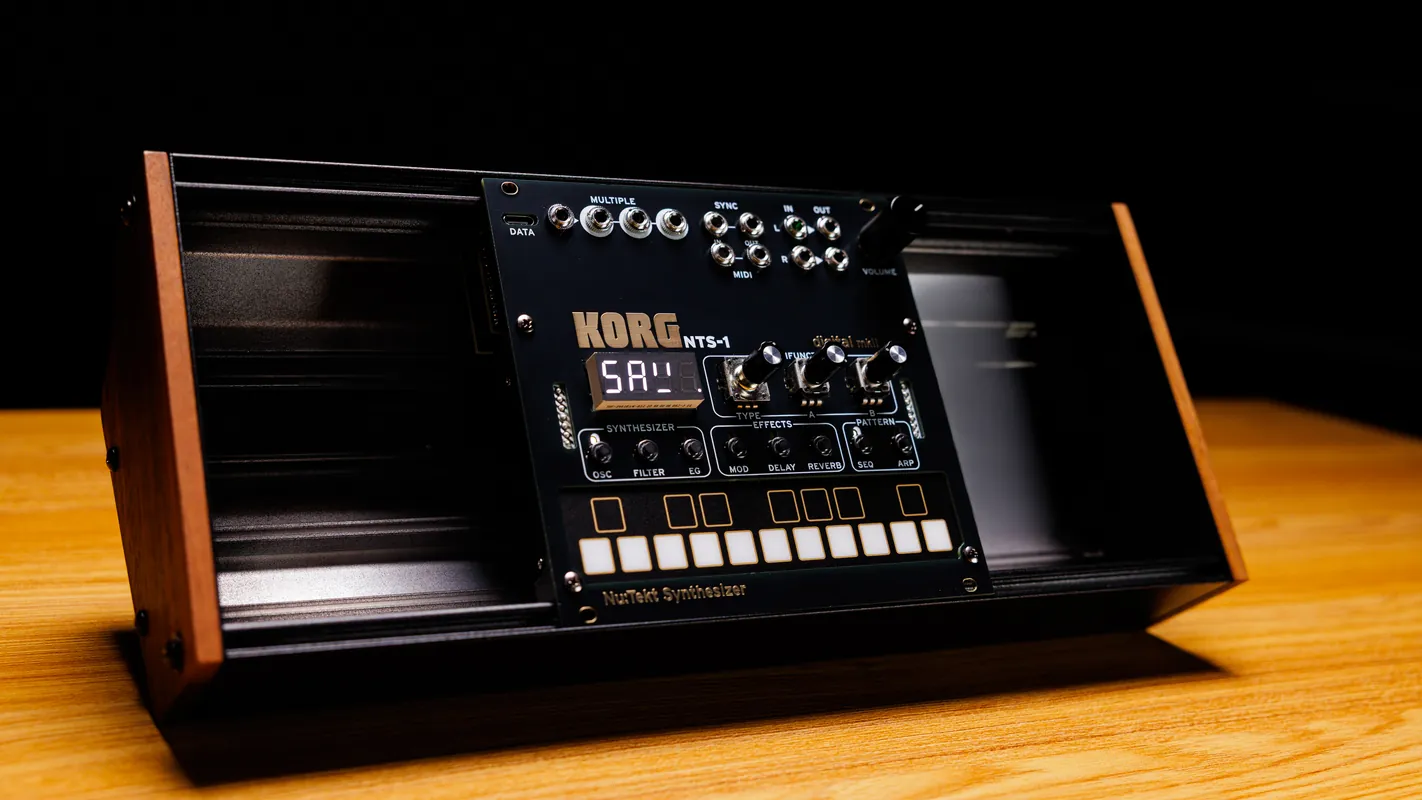

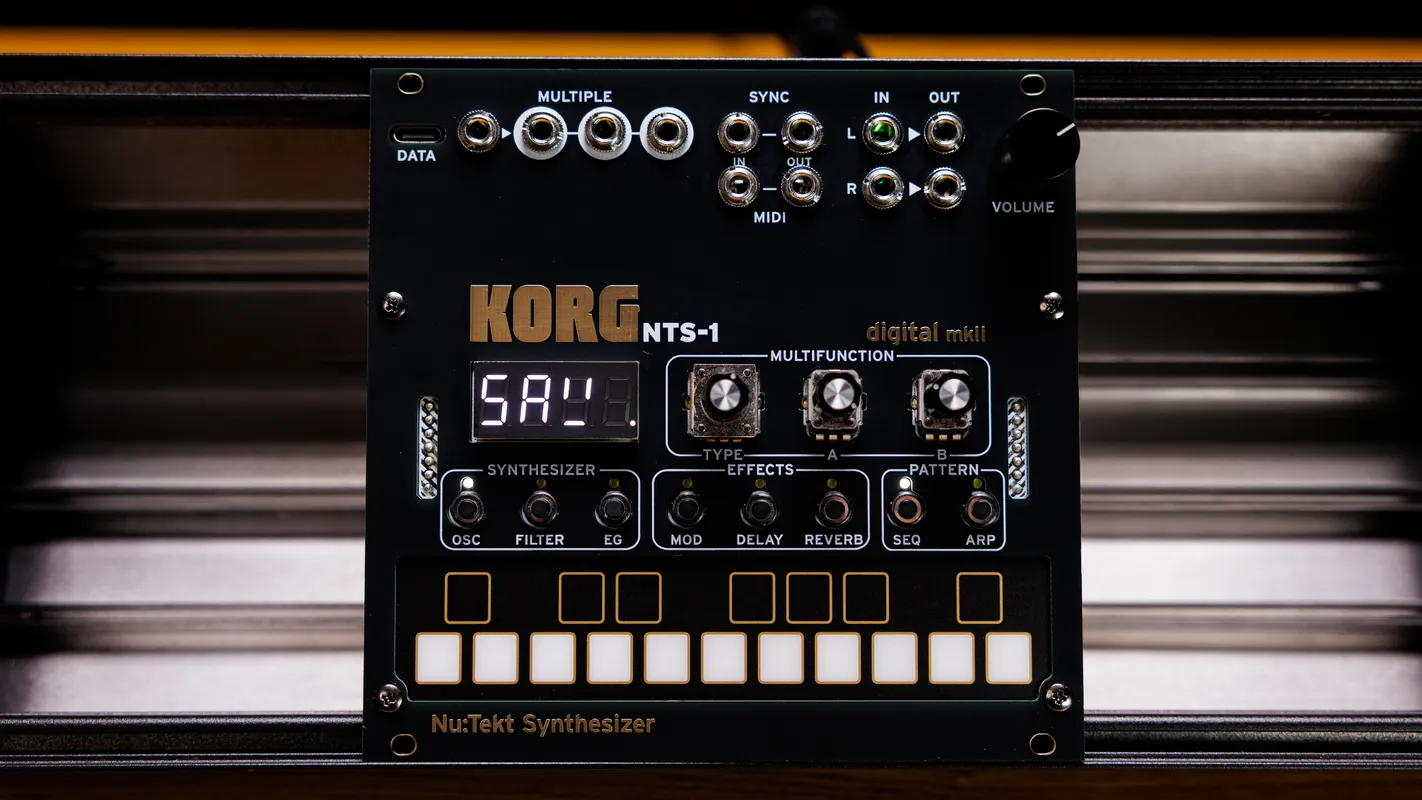

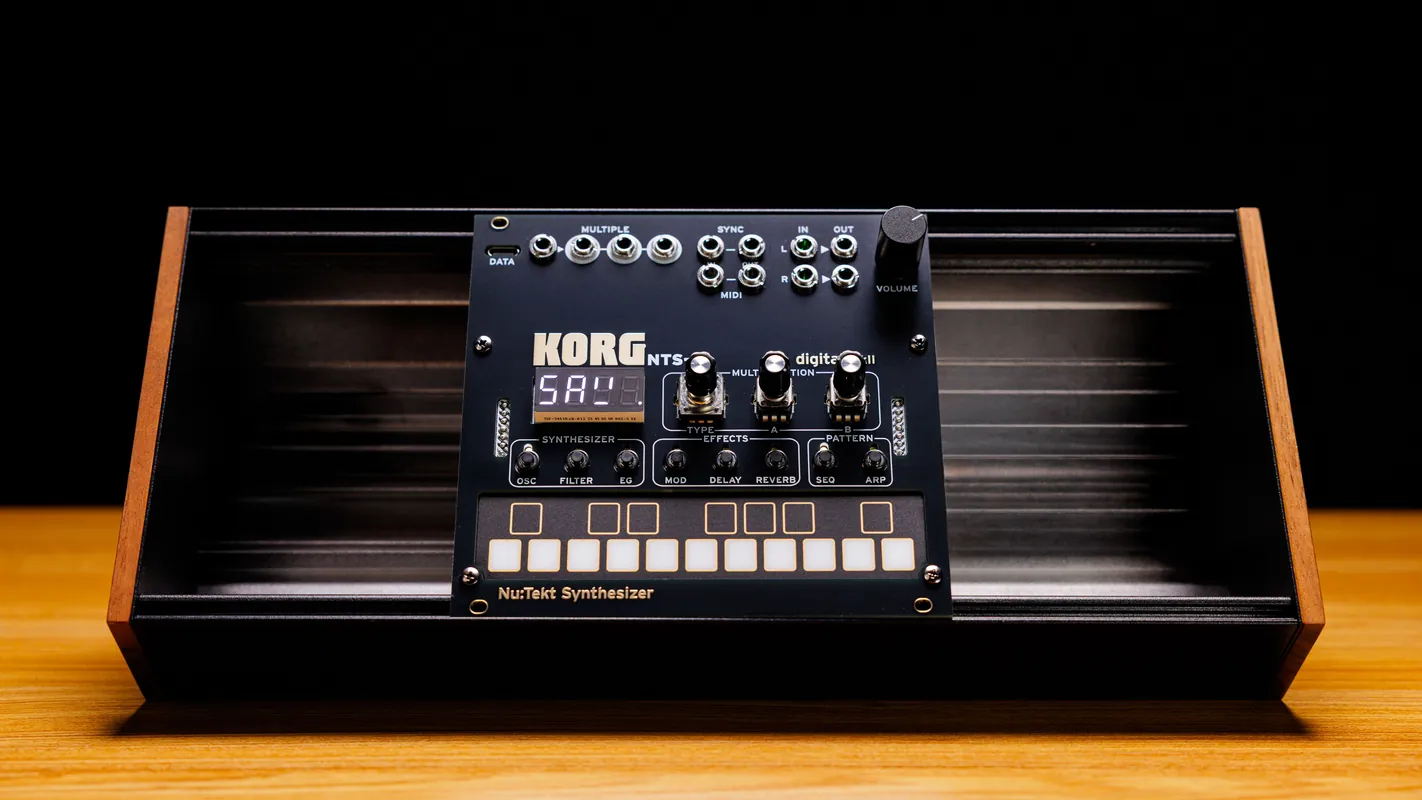

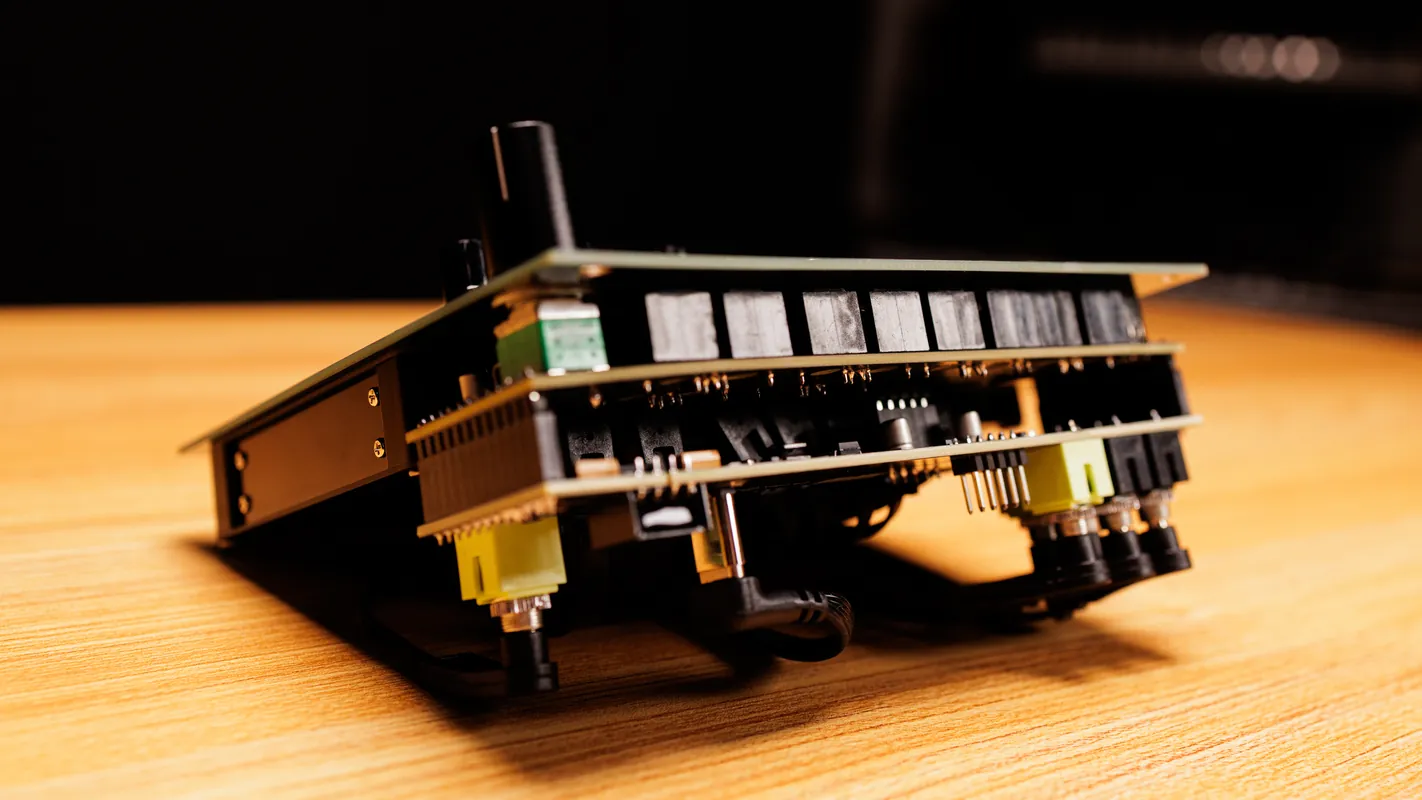

Gallery
